STRONG ATRIA Wi-Fi Mesh Home Kit 1200
ATRIA Wi-Fi Mesh Home Kit 1200
Replace your existing Wi-Fi with a Wi-Fi that simply works!
Using state of art Easy Mesh solution, STRONG’s Wi-Fi Mesh Home Kit 1200 combines Mesh technology with the powerful 802.11ac MU-MIMO Wi-Fi standard for ultimate speed and coverage at home. This package of 2 ATRIA Mesh Extender 1200 replaces your current Wi-Fi network without changing your modem or router. It brings a super-fast and seamless roaming Wi-Fi network at a speed up to 1200 Mbit/s with coverage up to 200 m². Depending on the size of your house, you can add up to 4x additional ATRIA Mesh Extender 1200 (up to 6x ATRIA Mesh Extender 1200 cover an area of up to 600 m²). Manage your Wi-Fi Mesh network at a finger touch with the ATRIA App available for Android and iOS devices.
Product overview
- Add-on unit for ATRIA Wi-Fi Mesh Home Kit 1200
- Easy MESH Support (MAP R1) to improve coverage, performance and connectivity of the Wi-Fi network
- Only one Wi-Fi name all over the house
- Intelligent roaming
- Speed up to 1200 Mbit/s
- MU-MIMO dual band concurrent
- Supports Wi- Fi 5 (802.11ac/a/b/g/n)
- 300 Mbit/s @ 2.4 GHz + 867 Mbit/s @5 GHz
- WPA™/WPA2™ for Wi-Fi security
- Connect & Secure (WPS) button for an easy Mesh configuration
- Multiple Access Point Configuration
- Works with any standard modem or router
- Up to 6x Mesh Extender 1200 cover up to 600 m² on multiple floors
- Є конфігурація роботи як точки доступу
- Mesh 1200 and Mesh 1610 are not compatible
Wi-Fi performance
• Supports Wi-Fi 5 (802.11ac/a/b/g/n) standards
• Speed up to 1200 Mbit/s
• MU-MIMO Dual band concurrent
• 300 Mbit/s @ 2.4GHz + 867 Mbit/s @5 GHz
• Mesh/Access Point/Router operational modes
• Works with any standard modem or router
• Supports Wi-Fi 5 (802.11ac/a/b/g/n) standards
• Speed up to 1200 Mbit/s
• MU-MIMO Dual band concurrent
• 300 Mbit/s @ 2.4GHz + 867 Mbit/s @5 GHz
• Mesh/Access Point/Router operational modes
• Works with any standard modem or router
Coverage & Reliability
- Easy MESH Support for maximum coverage, performance and connectivity
- Multiple Access Point Configuration
- Only one Wi-Fi name all over the house
- Intelligent roaming in Mesh configuration
- Wi-Fi Mesh Home Kit covers up to 200 m2

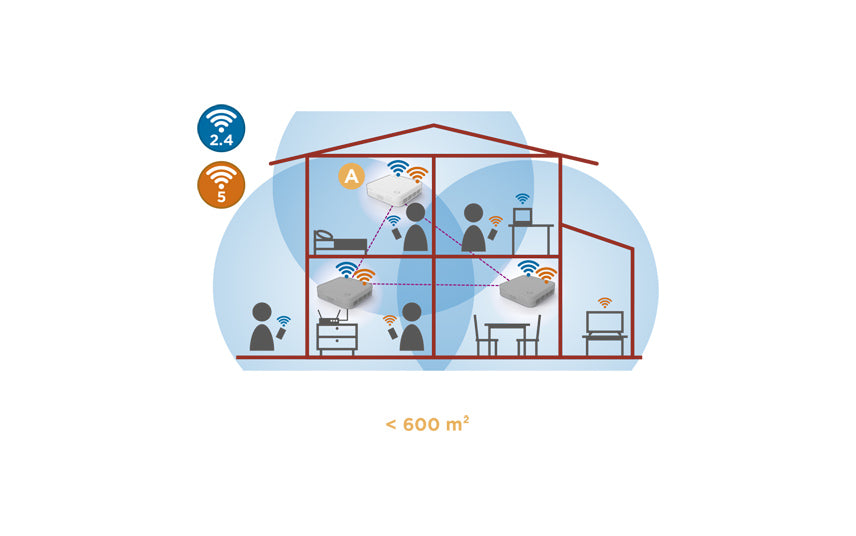

- Up to 6x ATRIA Mesh Extender 1200 cover up to 600 m² on multiple floors
Security
- WPATM/WPA2TM for Wi-Fi security
- Connect & Secure (WPS) button to add additional ATRIA Mesh Extender 1200 in few minutes
- Connect & Secure (WPS) button to simply connect your Wi-Fi devices to your Wi-Fi Mesh network
Connections
- 3x Gigabit Ethernet ports to connect any computer, set-top-box, Smart TV, game console, …

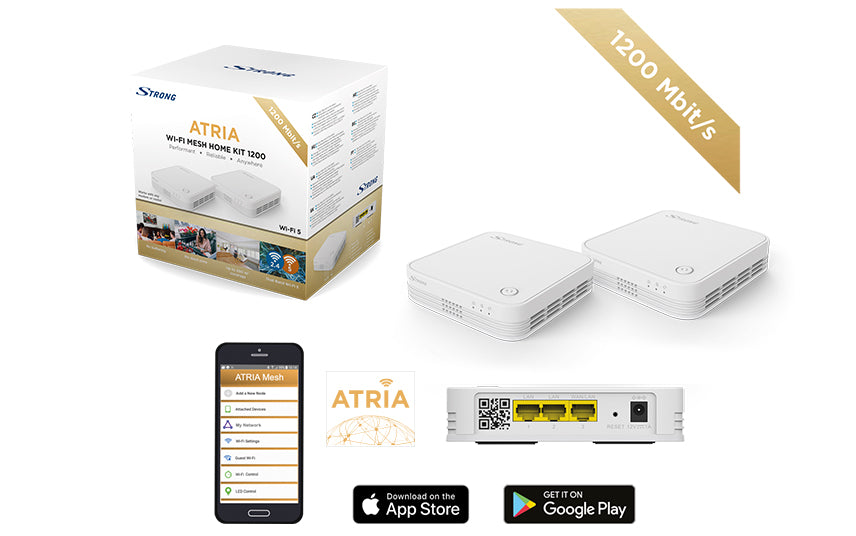

- ATRIA Mesh app to manage your Wi-Fi Mesh network at a finger touch
| WI-FI | |
|---|---|
| Frequency | 2.4 GHz and 5 GHz concurrent |
| Standards | IEEE 802.11ac/n/g/b/a, IEEE 802.11d, IEEE 802.11h, IEEE 802.11e, IEEE 802.11i |
| Signal Rate | 5 GHz: Up to 867 Mbit/s 2.4 GHz: Up to 300 Mbit/s |
| Security | WPA™/WPA-PSK™ & WPA2™/WPA2-PSK™ |
| Antenna | 4x internal antennas (3 dBi) |
| Transmit Power | Europe: <20 dBm (2.4 GHz), <23 dBm (5 GHz) |
| Supported Channels | 5 GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112 2.4 GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 |
| FEATURES | |
|---|---|
| Easy MESH Support | Automatically Organized Network Auto Configuration Seamless Roaming Auto MESH Routing Auto Healing (Redundancy and Fail-over) Intelligent roaming (Dynamic management of clients and clients frequency bands) Multiple access point architecture (up to 6x ATRIA Mesh Extender 1200) Only one Wi-Fi name all over the house (configuration sharing) |
| HARDWARE | |
|---|---|
| Ethernet Ports | 3x 10/100/1000M WAN/LAN ports (Auto MDI/MDIX) |
| Button | Connect & Secure (WPS), Reset |
| LEDs | Power, WAN, Pairing |
| Power | External power supply, 12 V/1 A DC |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Main Chipset | RTL8197FS |
| Wi-Fi Chipset | RTL8812FR for 5GHz |
| SOFTWARE | |
|---|---|
| Basic Network | DHCP, DNS, IGMP v1/v2, NAT, IPV4/V6, WDS, WPS, WMM |
| Management | Web User Interface, Time Settings, Configuration Backup/Restore, Firmware Upgrade, System Log |
| Internet Protocol | IPv4/V6 |
| STRONG Mesh app | Android and iOS downloadable app to manage the Wi-Fi Mesh network |
| OTHER SPECIFICATIONS | |
|---|---|
| Certification | CE |
| Power consumption per unit | < 8 W |

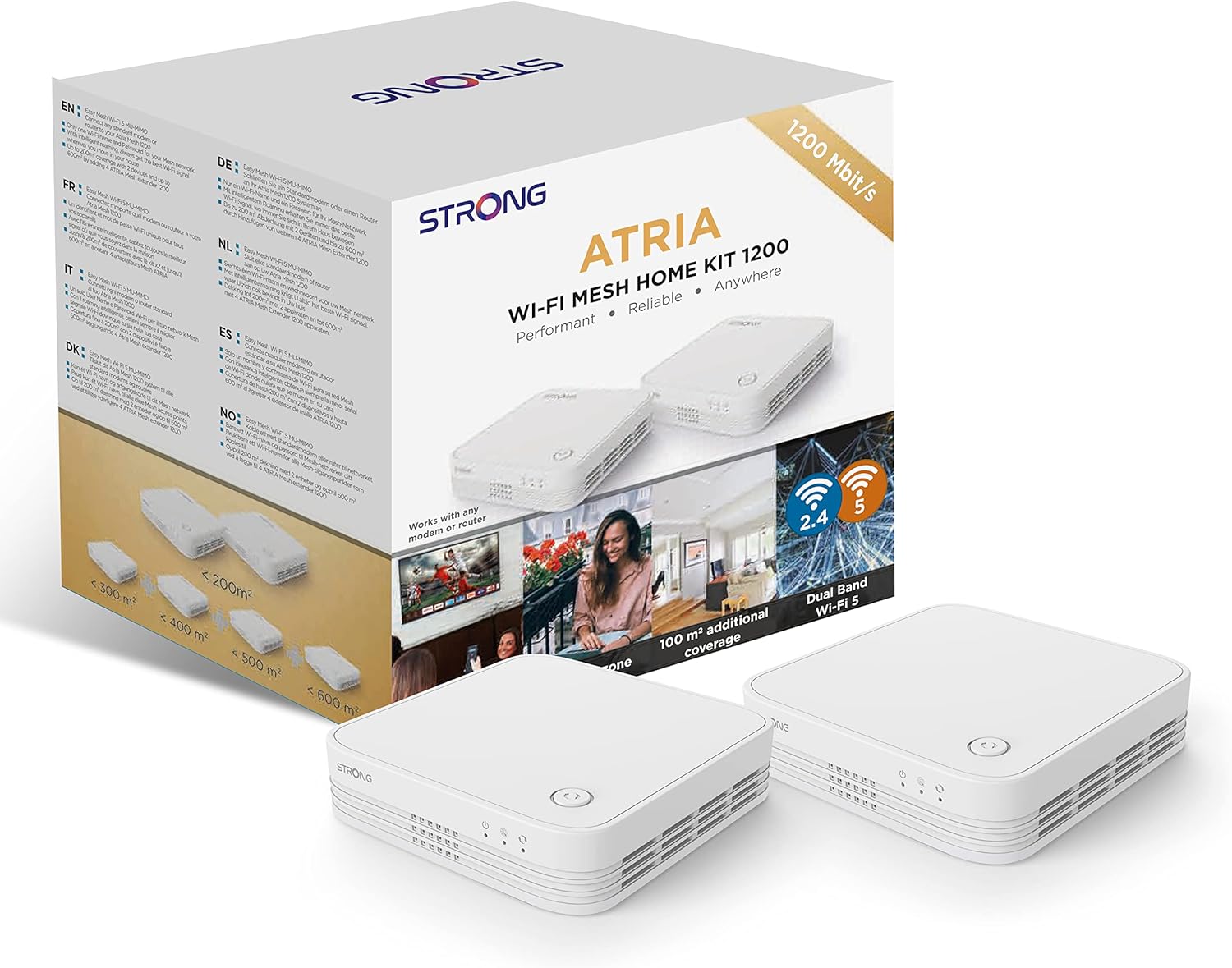

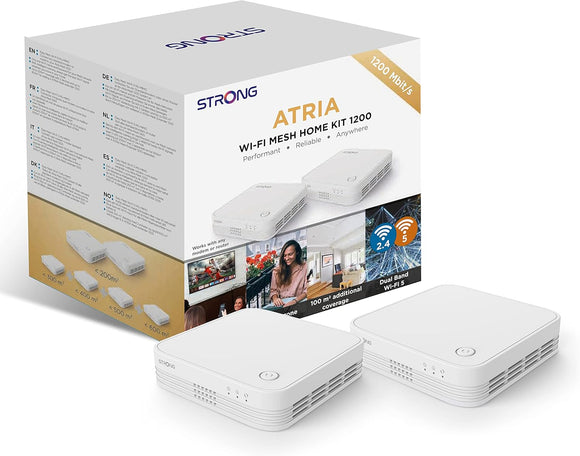

| Package Contents | 2x Mesh Extender 1200 2x Power Supply Units (12 V/1 A DC) 1x CAT5E Ethernet Cable 1x Installation Instructions, Warranty Card |
| System Requirements | Internet Browser |
| EAN | 9120072372025 |
| ENVIRONMENT | |
|---|---|
| Operating temperature | 0 °C~+45 °C |
| Storage temperature | -20 °C~+70 °C |
| Operating humidity | 10%~95% non-condensing |
| Storage humidity | 10%~95% non-condensing |
| Dimensions (WxDxH) per unit | 130*130*30 mm |
| Weight per unit | ~220 g |
