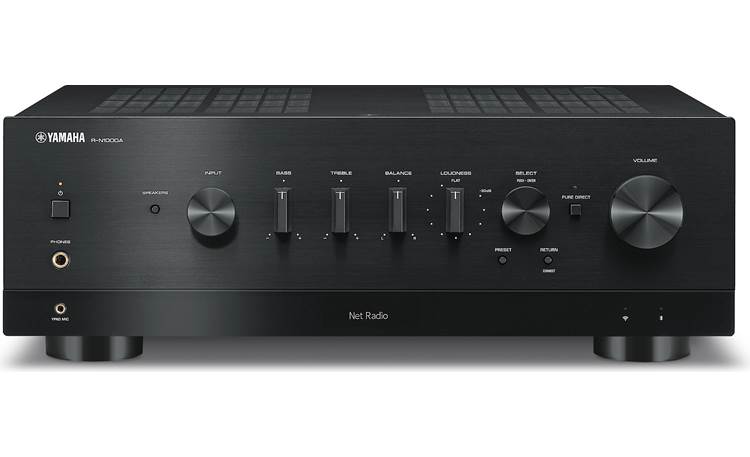

YAMAHA R-N1000A New
METICULOUSLY CRAFTED SOUND FOR YOUR LISTENING LIFESTYLE
To those who relentlessly strive for the best sound. Our R-N1000A delivers total enjoyment of your music content with full-fledged Hi-Fi sound, drawing on the technologies of our top-end model. Featuring Yamaha's original YPAO™ sound field correction, high-capacity custom-made transformers, ultra-precise ESS DACs, and a host of other superior parts, the R-N1000A has everything necessary to produce high-quality sound to transform your usual living room into an extraordinary environment—where you can immerse yourself in the music and fully enjoy a space of pure sonic delight.
DOUBLE BOTTOM CHASSIS
The enclosing structure is further strengthened by a double-bottom chassis and a thick iron damping plate of 1 mm added to the chassis bottom. This eliminates various vibrations that would adversely affect the sound and enhances the expressiveness of the lower frequencies—conveying both the profound power and supple grace of even the performance of a full concert orchestra.
The R-N1000A also employs anti-resonance feet designed under a concept of vibration absorption. By arranging thin curved reinforcing bars on the outer periphery and thick straight reinforcing bars in the center, the vibration energy transmitted from the outside of the leg is effectively dispersed and diminished, while maintaining high central rigidity. These make it possible to reproduce a focused sound that lets you fully feel the rhythm and dynamics of the music.
HIGH-QUALITY PARTS FOR OUTSTANDING AUDIO PERFORMANCE
Custom-made power transformer and block capacitors, one-point grounding system, high-quality audio condensers, and other top-class parts effortlessly handle demanding audio signal conditions. Since the quality of each individual part, as well as how they work together, basically determines the sound quality of any component, Yamaha makes sure that only the most carefully selected and tested parts are used.
The R-N1000A uses the renowned SABRE ES9080Q 384 kHz / 32-bit DAC (from ESS Technology) to deliver superior S/N performance. Combined with Yamaha’s original network module, the unit thoroughly draws out all the sonic merits of high-resolution sound sources, effectively reproducing even the subtle ambience of concert halls and delicate expressive nuances in the sound.
LOW IMPEDANCE CONCEPT
In order to thoroughly eliminate energy loss and degradation of the audio signal, the R-N1000A features thick wires for the ground connection a critical feature that establishes the componentry as being truly premium Hi-Fi. In addition, a screw connection is adopted for the output from the power amplifier section in order to strengthen the ground, which is important for audio quality. This gives the R-N1000A increased signal-to-noise performance, making it possible to reproduce sound with full clarity.

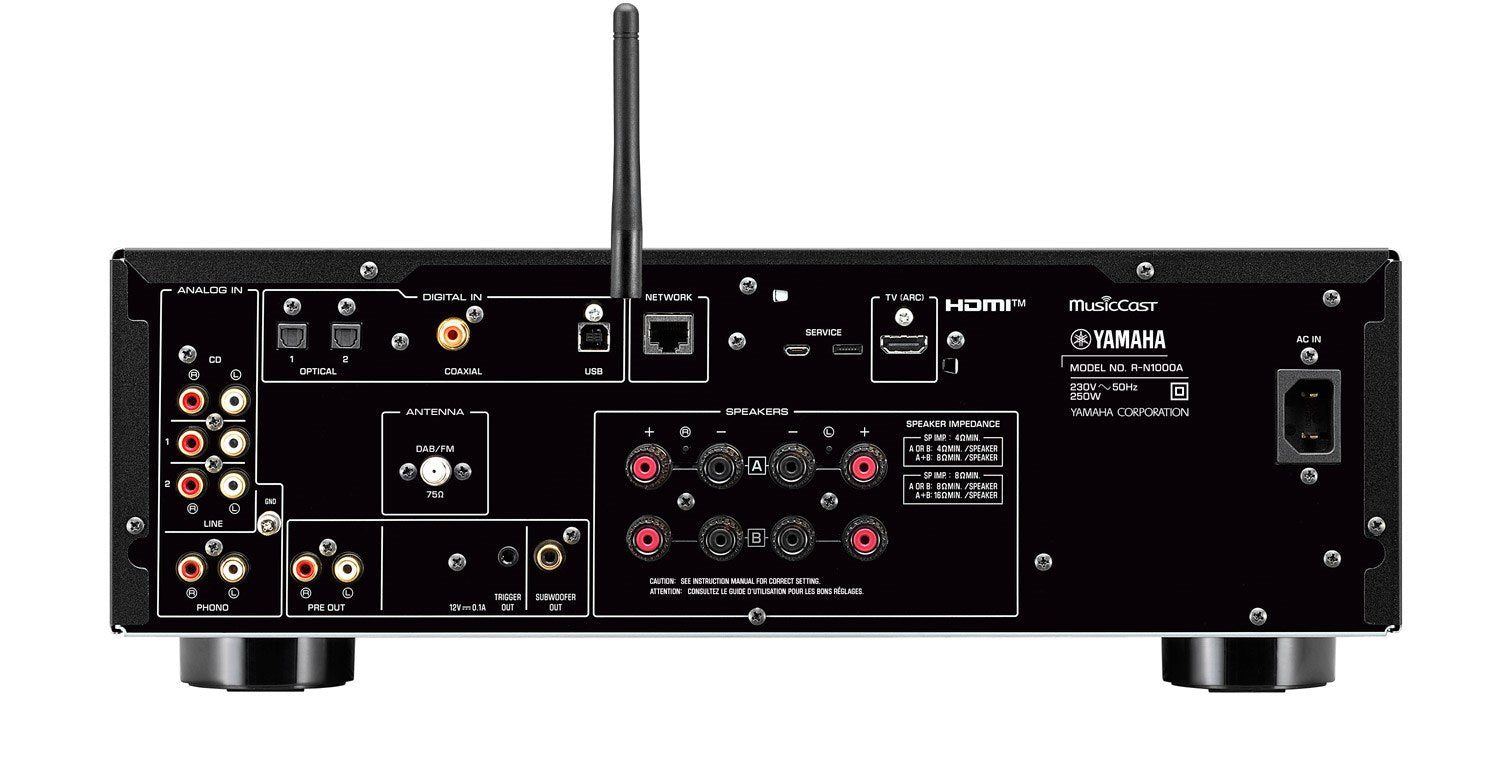

Gold-plated terminals ensure a high quality connection that prevents signal loss. The R-N1000A have gold-plated speaker terminals and input terminals.
Get true Hi-Fi sound on your TV. The R-N1000A is compatible with HDMI ARC (Audio Return Channel), allowing you to connect to your TV with just a single cable meaning that you can enjoy not only audio but also TV audio content such as live performance broadcasts and music programs, with excellent sound quality.
The comprehensive connectors of the R-N1000A include special phono input terminals, letting you easily connect a turntable and enjoy music from your vinyl record collection.
A stable transmission method through asynchronous transmission has been adopted. Moreover, an ultra-precision dedicated crystal clock has been installed to improve signal accuracy. It also supports DSD 11.2MHz native playback and PCM 384kHz playback, letting you enjoy exceptionally high-quality sound that takes full advantage of high-resolution audio sources.
DAB and DAB+ are Digital Audio Broadcasting formats that offer a large selection of radio stations with high sound quality. Other benefits include automatic tuning to available stations with a list to choose from, and display of information such as station name. You can preset 40 DAB / DAB+ stations.
*Availability of DAB / DAB+ tuner varies by region
Pure Direct mode enables the music signals to travel the shortest possible circuit route, bypassing the buffer amp and the tone, loudness and balance controls to virtually eliminate any signal degradation, for the purest sound quality.
Entertainment content from your records, TV, CDs, and other sources connected to the R-N1000A can be sent to other MusicCast devices and enjoyed throughout your home. Moreover, all MusicCast products have been designed first and foremost for superior sound quality. High-res audio formats including Apple Lossless (ALAC) up to 96 kHz, WAV, and FLAC or AIFF up to 384 kHz are supported.
